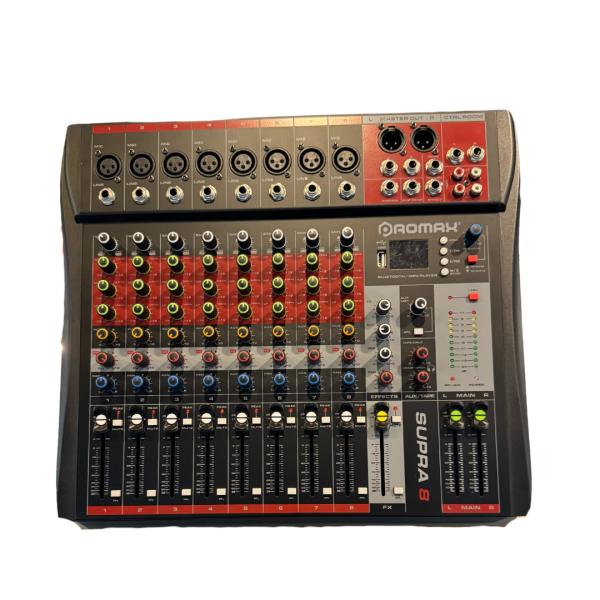

Mixer 8 Canales | Promax supra 8

Descripción

MARCA:PROMAX®
bluetooth: incluido
Canales: 8 canales
Efectos: efectos múltiples
Salidas: XLR, 1/4″
Serie: Supra Serie
Subsalidas: XLR,1/4″



Maximum input level
MIC +24dBu
Line +24dBu
Other Line +20dbu

Maximum output level
XLR +26dBu
TRS +20dBu

Master meters
10 segment -24dB to CLIP

Channel meters
1 LED signal indication

Frequency response
20Hz to 30KHz 0.5dB

CMRR (MIC 1kHz)
> 75dB

THD+N
<0.01% (Channel to mix out)

Crosstalk at 1kHz
Fader shutoff >85dB
Mute shutoff > 85dB
Inter channel > 82dB

Noise, rms 22Hz to 22KHz
EIN -122dBu
Residual output noise <-90dBu
L/R main mix noise <-82dBu
Aux mix noise <-82dBu

MONO EQ
LF, shelving, +/-15dB, 12KHz
HM, peak/dip, +/-15dB, 2.5KHz
LF, shelving, +/-15dB, 80Hz

Mono channel
XLR balanced, pin 2 hot, 2K ohm, Sensitivity -40 to +14 dBu TRS balanced, tip hot, 10K ohm, Sensitivity -20 to+14 dBu
XLR, phantom +48V

2-track return
RCA, unbalanced, 4K ohm, -2 dBu

2-track send
RCA, unbalanced, <75 ohm, -2 dBu

L/R output
XLR balanced, pin 2 hot, <75 ohm, +4 dBu, Max.+22 dBu

FX/AUX output
TRS unbalanced, tip hot, <75 ohm, -2 dBu, Max, +18 dBu

Headphones
TRS, tip L, ring R, 30 to 600 ohm headphones recommended

Max. Power input power
40watts
